Switch DC-015L TERRA

94,05 zloty

Entrance: FM / VHF (I / II): 47 ... 108 MHz, VHF (III): 174 ... 230 MHz UHF: 470 ... 790 MHz + DC ; Selected features: built -in LTE filter ;

AVAILBILITY: 4 In the SKU magazine: DC-015L Categories: , ,

Description

Entry:
  • FM / VHF (I / II): 47 ... 108 MHz - socket F,
  • VHF (III): 174 ... 230 MHz - nest F
  • UHF: 470 ... 790 MHz + DC - socket F
  • Impedance:75 Ω
    Casing:<1 db @ fm / vhf (i / ii)
    <1 db @ vhf (iii)
    <2 db @ uhf
    Permanent transition:24 V / 200 mA
    Selected features:
  • Built -in LTE filter
  • Separation VHF, UHF> 20 dB
  • High screening

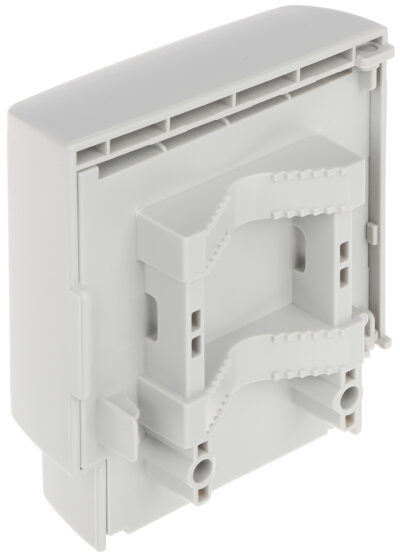

  • Case:cast housing attached inside a compact plastic housing
    Fastening:The housing can be screwed to the wall with screws and attached to the mast with a band
    Work temperature:-20 ° C ... 50 ° C
    Libra:0.18 kg
    Dimensions:107 x 89 x 43 mm
    Manufacturer / brand:Terra
    Guarantee:2 years

    Download materials:

    Additional information

    Libra 0.2000 kg
    Dimensions 11.5 × 9.5 × 5 cm
    Libra

    0.2000

    Length

    11.5

    Width

    9.5

    Height

    5

    Ean

    5902887050084

    Producer

    Terra
