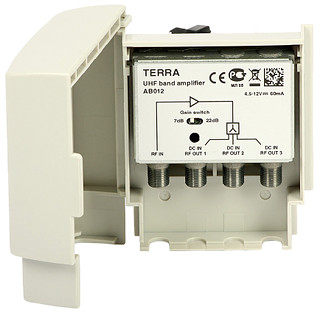

Name: AB-012 DVB-T 5V antenna amplifier
SKU: AB-012
Availability: InStock

AB-012 DVB-T 5V antenna amplifier

0 out of 5

107,41 zloty

Frequency range: 470 MHz ... 862 MHz ; Strengthening: 7 dB / 22 dB (switch) ;

AVAILBILITY: 2 In the SKU magazine: AB-012 Categories: ground and satellite television , amplifiers , mast amplifiers

Description

Frequency range:	470 MHz ... 862 MHz
Reinforcement :	7 dB / 22 dB (switch)
Noise:	< 1 db
Suppression of mismatch:	> 10 db
Number of inputs/outputs:	1 / 3
IMA3 60DB:	103 DBµV
Amplifier screen:
Input / output impedance:	75 Ω
Type of connectors:	"F"
Case:	cast housing attached inside a compact plastic housing

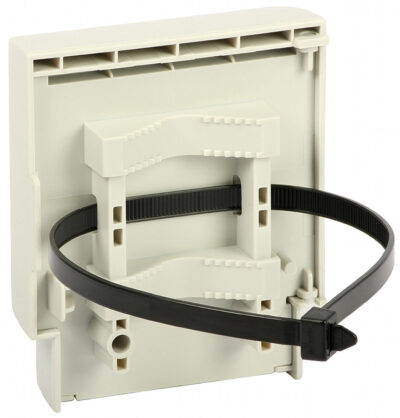

Fastening:	on the mast or wall
Work temperature:	-20 ° C ... 50 ° C
Power supply:	4.5 V ... 12 V DC
Libra:	0.170 kg
Dimensions:	108 x 90 x 44 mm
Guarantee:	2 years

There is no product opinion yet.
