LE -403545 overcurrent switch 16A type C Legrand - Picture 1
LE -403545 overcurrent switch 16a type C Legrand - Picture 2
LE -403545 overcurrent switch 16a type C Legrand - Picture 3
LE -403545 super -current switch 16A type C Legrand - Picture 4
LE -403545 hypertrophies 16A type C LEGRAND - Picture 5
LE -403545 overcurrent switch 16a type C Legrand - Picture 6
LE-403547 super-current switch. Three-phase 25A LEGRAND
LE-403549 overcurrent switch three-phase 40a type C Legrand

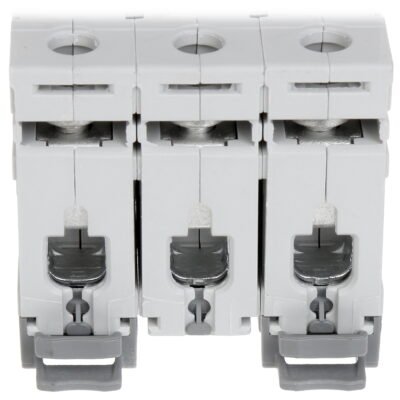

LE-403545 overcurrent circuit breaker 16a type C Legrand

0 out of 5
(There is no product opinion yet.)

79,72 zloty

Type of device: overcurrent, three -phase switch ; Rated current: 16 A ; Number of poles: 3 ; Characteristics of triggering: type C ; Rated short -circuit switching capacity: 6000 A ; Type of connectors: Twisted clamps ; Housing: installation on DIN rail, TS-35 ; Width in modules 17.5 mm: 3 ;

AVAILBILITY: 2 In the SKU magazine: Le-403545 Categories: ,

Description

Type of device:Hypertension, three -phase switch
Rated current:16 A
Number of poles:3
Characteristics of liberation:Type C
Rated short -circuit connecting capacity:6000 A
Rated voltage:
  • 230 V AC / 50 Hz
  • 400 V AC / 50 Hz
    • Type of connectors:Twisted clamps
    Selected features:
  • The possibility of equipping with auxiliary contacts, triggers and drives from the DX3 series
  • Inability to connect residual current blocks
  • Possibility of connecting with combing or sticks
  • Planned place for a card with a description
    • Case:Plastic, mounting on DIN, TS-35 rail
    Width in modules 17.5 mm:3
    Libra:0.31 kg
    Dimensions:54 x 83 x 74 mm
    Manufacturer / brand:Legrand
    Guarantee:2 years

    Download materials:

    Additional information

    Libra 0.3360 kg
    Dimensions 10 × 9 × 5.5 cm
    Libra

    0.3360
    Length

    10
    Width

    9
    Height

    5.5
    Ean

    3414970389534
    Producer

    Legrand

    Reviews

    There is no product opinion yet.

    Write the first opinion about "hypertension switch Le-403545 Three-phase 16a type C Legrand"
