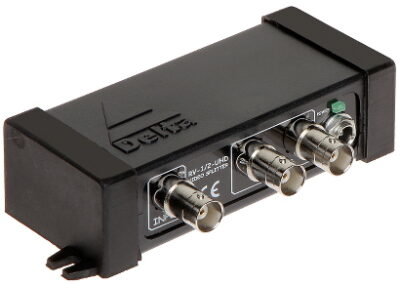

Video branch RV-1/2-UHD

84,57 zloty

STANDARD: AHD-8 MPX 4K UHD, HD-CVI-8 MPX 4K UHD, HD-TVI-8 MPX 4K UHD, CVBS-PAL, NTSC ; Number of entrances: 1 bnc ; Number of outputs: 2 pcs BNC ; Power supply: 12 V DC ;

AVAILBILITY: SKU magazine RV-1/2-UHD Categories: , ,

Description

Standard:
  • AHD - 8 Mpx 4K UHD ,
  • HD-CVI -8 MPX 4K UHD ,
  • HD-TVI -8 MPX 4K UHD ,
  • CVBS - PAL , NTSC
  • Number of inputs:1 pc. BNC
    Number of outputs:2 pcs .
    Workpiece:0 ... 120 MHz (-3db)
    Impedance:75 Ω
    Impedance output:75 Ω
    Entrance protection:ESD, IEC 61000-4-2, ± 30kV Contact, ± 30kV Air
    Lightning, IEC 61000-4-5, 12A (T P = 8/20μs)
    Output securing:ESD, IEC 61000-4-2, ± 30kV Contact, ± 30kV Air
    Lightning, IEC 61000-4-5, 12A (T P = 8/20μs)
    Power supply:12 V DC (no power supply included)
    Power consumption:40 has
    Reinforcement :db
    Libra:0.07 kg
    Dimensions:117 x 30 x 62 mm
    Manufacturer / brand:DELTA
    Guarantee:5 years

    Download materials:

    Additional information

    Libra 0.0780 kg
    Dimensions 12 × 6.5 × 3 cm
    Libra

    0.0780

    Length

    12

    Width

    6.5

    Height

    3

    Ean

    5902887048531

    Producer

    DELTA
