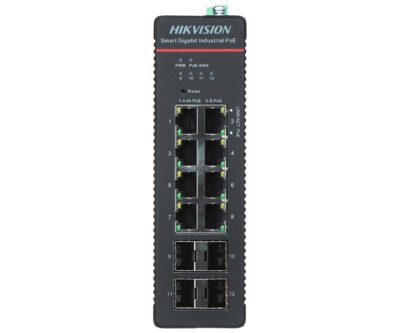

Industrial Switch PoE DS-3T1512HP-SSI-8P4F/NOPOWER 8-port SFP Hikvision-Picture 1
Industrial Switch PoE DS-3T1512HP-SSI-8P4F/NOPOWER 8-port SFP Hikvision-Picture 2
Industrial Switch PoE DS-3T1512HP-SSI-8P4F/NOPOWER 8-port SFP Hikvision-Picture 3
Industrial Switch PoE DS-3T1512HP-SSI-8P4F/NOPOWER 8-port SFP HIKVISION-Picture 4
Industrial Switch PoE DS-3T1512HP-SSI-8P4F/NOPOWER 8-port SFP Hikvision-Picture 5
WLAN USB DS-3WRU3X-H 286MB/S @ 2.4GHz Hikvision card
Switch Poe DS-3E1512HP-SI-8P2T2F 8-port SFP Hikvision

Industrial Switch PoE DS-3T1512HP-SI-8P4F/NOPOWER 8-port SFP Hikvision SFP

0 out of 5
(There is no product opinion yet.)

882,04 zloty

LAN ports: 8 x RJ45 (4 x Poe (802.3BT) + 4 x Poe (802.3af/AT)), 4 x SFP port ; Transmission speed: 10 /100 /1000 Mb / s - 8 LAN & Poe ports, 1000 MB / s - 4 SFP ports - UPLINK ; Maximum total power: 300 W ; Selected features: Installation on DIN Rail ;

AVAILBILITY: 1 In SKU magazine: DS-3T1512HP-SI-8P4F/NOPOWER Categories: , ,

Description

LAN ports:
  • 8 x RJ45 (4 x Poe (802.3BT) + 4 x Poe (802.3af/AT)),
  • 4 x SFP port
    • Transmission speed:
  • 10 /100 /1000 Mb / s - 8 LAN & Poe ports,
  • 1000 Mb/s - 4 SFP ports - Upplink
    • Maximum output power:
  • Ports 1 ... 4: 90 W / Port Poe,
  • Ports 5 ... 8: 30 W / Port Poe
    • Maximum total power:300 W
    Mac address board:8k
    Management:
    Default IP address:192.168.1.64
    Default login / administrator password:admin / -
    Working modes:
  • EXTEND ON: 300 m, 10 Mb/s @ utp cat. 5e, 6
  • Extend off: 100 m, 1000 Mb/s @ utp cat. 5e, 6
    • Selected features:
  • Switch is managed via www
  • Configuration and management from the IVMS-4200 application level
  • Auto Detection MDI/MDI-X-automatically detects data transmission mode
  • Topology preview and the state of the network
  • Data flow control
  • Storm Control function
  • Port Mirroring function
  • Static aggregation connects
  • QOS: Set a queue of Priority SP, WRR, SP+WRR
  • VLAN
  • Spanning Tree STP/RSTP
  • SNMPV1/V2C
  • Watchdog Poe
  • The device supports 8-pin power supply
  • Remote configuration
  • Remote software update
  • Installation on the DIN rail
    • LEDs:Power, Link/Act, Poe, Poe Max, 9 SFP, 10 SFP, 11 SFP, 12 SFP
    Certificates:Ce
    Case:Metal
    Security:6 kV surge floes - PoE ports
    Power supply:48 ... 57 V DC - Twisted clamps (no power supply included)
    Work temperature:-10 ° C ... 55 ° C
    Libra:0.9 kg
    Dimensions:164 x 140 x 46 mm
    Manufacturer / brand:Hikvision
    Sap code:301803311
    Guarantee:3 years

    Download materials:

    Additional information

    Libra 1.0500 kg
    Dimensions 21.5 × 18 × 8.5 cm
    Libra

    1.0500
    Length

    21.5
    Width

    18
    Height

    8.5
    Ean

    6936422105655
    Producer

    Hikvision
