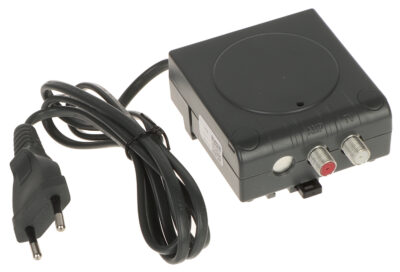

Programmable multi-range amplifier Johansson-6714/Lite Johansson

817,93 zloty

Frequency range: 174 MHz ... 240 MHz - VHF, 470 MHz ... 694 MHz - UHF ; Maximum output level IMD3 = 60 DB DIN45004B: 114 DBµV @ VHF / UHF ;

AVAILBILITY: 2 In the SKU magazine: Johansson-6714/Lite Categories: , ,

Description

Frequency range:174 MHz ... 240 MHz - VHF,
470 MHz ... 694 MHz - UHF
Reinforcement :max. 65 dB
Number of inputs/outputs:3 / 1
Reinforcement regulation:0 dB ... 65 dB - automatic reinforcement control
Maximum output level IMD3 = 60 DB DIN45004B:114 DBµV @ VHF / UHF
Power supply:12 V DC (power supply included)
Power consumption:9 in
Work temperature:-5 ° C ... 50 ° C
Libra:0.5 kg
Dimensions:190 x 163 x 58 mm
Manufacturer / brand:Johansson
Guarantee:2 years

Download materials:

Additional information

Libra 0.8460 kg
Dimensions 42.5 × 14.5 × 5.5 cm
Libra

0.8460

Length

42.5

Width

14.5

Height

5.5

Ean

5404041102672

Producer

Johansson
