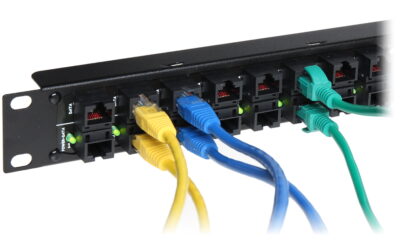

Patch 8-port panel with power supply ZR48-158/Poe-8 48V DC 3.3A-Picture 1
Patch 8-port panel with power supply ZR48-158/Poe-8 48V DC 3.3a-Picture 2
Patch 8-port panel with power supply ZR48-158/Poe-8 48V DC 3.3A-Picture 3
Patch 8-port panel with power supply ZR48-158/Poe-8 48V DC 3.3A-Picture 4
Patch 8-port panel with power supply ZR48-158/Poe-8 48V DC 3.3A-Picture 5
Patch 8-port panel with power supply ZR48-158/Poe-8 48V DC 3.3a-Picture 6
Patch 8-port panel with power supply ZR48-158/Poe-8 48V DC 3.3a-Picture 7
Patch 8-port panel with power supply ZR48-158/Poe-8 48V DC 3.3a-Picture 8
Patch 8-port panel with power supply ZR48-158/Poe-8 48V DC 3.3A-Picture 9
AWZ-525 time relay module
Patch panel Poe-16/R19

8-port panel patch with power supply ZR48-158/Poe-8 48V DC 3.3A

0 out of 5
(There is no product opinion yet.)

431,36 zloty

The adapter allows the POE supply voltage to the typical computer pair; Power voltage: 90 V ... 132 V AC, 180 V ... 264 V AC ; Output voltage: 48 V DC ; Power supply capacity: 3.3 A ; MTBF (average time between failures): > 700000 h ;

AVAILBILITY: 5 In the SKU magazine: ZR48-158/Poe-8 Categories: , ,

Description

Type of power supply:Impulse
Supply voltage:selected by switch
  • 90 V ... 132 V AC ,
  • 180 V ... 264 V AC
    • Frequency of supply voltage:47 ... 63 Hz
    Power supply power:160 in
    Output voltage:48 V DC
    Output voltage adjustment:45.6 V ... 52.8 V
    Power supply capacity:3.3 and
    550 mA / output
    Efficiency:89 %
    MTBF (average time between failures):> 700000 h- Telcordia SR-332
    Power supply range:100 m
    Number of inputs:8 pcs (RJ-45)
    Number of outputs:8 pcs (RJ-45)
    Security:
  • 8 PTC polymer fuses - 550 mA
  • Surge
  • Anti -circuit
  • Overload
    • Selected features:PIN numbers of the RJ-45 connector
  • Data 1, 2 and 3, 6
  • Power 4, 5 (+) and 7, 8 (-)
  • Supported transmission speed 10 /100 Mb / s
  • Maximum load of one port of 550 mA
    • Manufacturer / brand:DELTA
    Selected features:Polymer fuse
    Signaling diodes:
  • Red diode - 48 V power supply
  • Green LED - burning fuse
    • Housing type:1 U Rack 19 ″
    Working temperature / relative humidity:-10 ° C ... 70 ° C / 10 % ... 80 %
    Libra:0.74 kg
    Dimensions:483 x 44 x 102 mm
    Guarantee:5 years

    Download materials:

    Additional information

    Libra 0.8780 kg
    Dimensions 51 × 12.5 × 5.5 cm
    Libra

    0.8780
    Length

    51
    Width

    12.5
    Height

    5.5
    Ean

    5902887038037
    Producer

    DELTA
