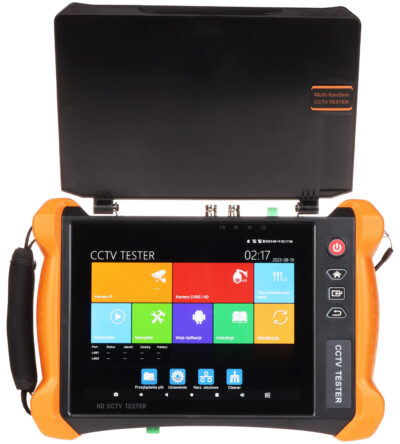

Multifunctional CCTV CS-H9F-80C tester

0 out of 5
(There is no product opinion yet.)

2959,11 zloty

Vision standard: AHD-8 MPX, HD-CVI-8 MPX, HD-TVI-8 MPX, TCP / IP-8K, CVBS-PAL / NTSC ; Display: 8 "Retina - capacitive touch screen, 2048 x 1536 px ; Video input: 1 pc. AHD / HD-CVI / HD-TVI / CVBS-BNC socket 1 pc. HDMI ; Video output: 1 cvbs 1 pc. HDMI ; LAN port: 2 pcs - cooperation with Poe cameras and switches ; Serial ports: RS-485 ; Protocols:: Pelco-D, Pelco-P ; Wi-Fi module ; Selected functions: Supported image compression methods: H.265, H.264, MJPEG ;

AVAILBILITY: 8 In SKU magazine: CS-H9F-80C Categories: ,

Description

Vision standard:
  • AHD - 8 Mpx ,
  • HD-CVI -8 Mpx ,
  • HD-TVI -8 Mpx ,
  • TCP/IP - 8K,
  • CVBS - PAL / NTSC
    • Display:8 ”Retina - capacitive touch screen, 2048 x 1536 px
    Video input:
  • 1 pc. AHD / HD-CVI / HD-TVI / CVBS -BNC socket
  • 1 pc. HDMI
    • Video output:
  • 1 pc. CVBS - BNC socket
  • 1 pc. HDMI
    • LAN port:2 pcs. - Cooperation with POE cameras and switches
    Audio entrance:1 pcs. Mini jack
    Audio output:1 pcs. Mini jack
    Video signal level meter:AHD , HD-CVI , HD-TVI , CVBS : Peak Level, Sync Level, Burst
    Video signal generator:
  • Control signal generator
  • Generating eight colored belts in PAL / NTSC standards
  • It is possible to generate a blue or black screen
    • Serial ports:RS-485
    Protocols:Service over 30 RS485 protocols: Pelco-D , Pelco-P , Yaan, Yaan-o, Yaan-1, Samsung, Panasonic, Lilin-Fast, Lilin-Mlp2, Molynx, Minking A01, Fastrax, CBC, LC-New, WV -CS850, Sony-Evi, LG-Multix, DAT-SD, Vicon, VCLTP, DH-YTC 06, Santachi, Bosch OSRD, Teleeye DM2, HD 600, Hikvision, Kalatel ASC, AD 168 (MB), Samsung SPD, Siemens, Cohu, Minking B01, Alec
    Transmission speed:150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 115200 b/s
    Twist test or telephone line:UTP or telephone cable connection test, ended with the RJ-45 plug
    RS-485, RS-232 test test:Testing data from the control device (commands are displayed hexadecly)
    Wi-Fi module:
    Identification of the cable in the beam:
    Audio test:
    Digital multimeter:
    Optical power measurement:
    VLS (VFL) - visual locator of fiber optic fibers:
    TDR reflectometer:
    Work as a power source:
  • 5 V DC / 2 A from the USB port
  • 12 V DC / 3 A
  • 24 V DC / 2 A
  • 48 V (Poe, LAN), 90 W (Max)
    • Battery power:
  • Li-ion battery: 11.1 V, 3350 mAh, 37.19 Wh
  • 15 V DC / 2.4 A (power supply included)
    • Estimated battery working time:10 hours (max)
    Service:Graphic menu - touch control and buttons
    Selected functions:
  • AHD camera test
  • HD-CVI camera test
  • HD-TVI camera test
  • PAL/NTSC camera test
  • IP camera test - supported image compression methods: H.265 , H.264 , MJPEG
  • Searching and preview of IP cameras in accordance with ONVIF
  • Turning control and PTZ (Speed ​​Dome)
  • Preview from IP cameras using built-in applications-GDMSS HD Lite, GDMSS LITE, SAFIRE Connect, NETWORK STATE, XMEYE, CloudSee TIANDY TOOL, FSEYE, EZVIEW, FREEIP PRO, IVMS-4500 HD SAFIRE EASEVIEW, MEYE
  • Built -in web browser - Google Chrome
  • Control signal generator
  • Monitoring LAN connections
  • IP address scanner
  • Ping - link testing using ICMP packages
  • Detection of a connected port in Switch
  • Computer twist tester
  • Cooperation with POE cameras and switches
  • POE power meter
  • Power source DC 5V / 12V / 48V
  • Identification of the cable in the beam
  • Data Monitor-RS-485 Serial Port Monitor
  • Cable Tracer application - easy location of the cable in a disordered beam
  • Audio test
  • Hotspot-Wi-Fi
  • Video recording for the Micro SD card with the possibility of playback - 8 GB included
  • Recording recording
  • Installed VLC Media Player application - the ability to play multimedia files in many popular formats (.mp3, .mp4, .avi, .mpeg and others)
  • Calculator
  • Installed QuickOffice package - Creating and reading .docx text documents, .xlsx spreadsheet and .PPTX multimedia presentations.
  • Built -in flashlight
  • Android 11
  • Illuminated buttons
    • Work temperature:-10 ° C ... 50 ° C
    Permissible relative humidity of the environment:30 % … 90 %
    Libra:1.16 kg
    Dimensions:263 x 182 x 42 mm
    Shared languages:Polish, English, Bulgarian, Czech, French, Greek, Spanish, German, Portuguese, Russian, Turkish, Italian
    Guarantee:2 years

    Download materials:

    Additional information

    Libra 2,5420 kg
    Dimensions 35 × 30 × 10.5 cm
    Libra

    2.5420
    Length

    35
    Width

    30
    Height

    10.5
    Ean

    5902887089152
    Producer
