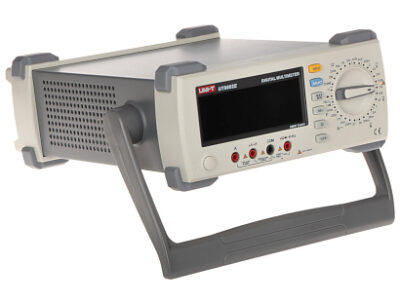

UT-8802E UNI-T laboratory meter

0 out of 5
(There is no product opinion yet.)

853,30 zloty

UT-8802E is a digital laboratory meter for measuring: voltage, current, resistance, capacity, frequency and checking the correct operation of the LEDs; USB ; Selected features: very high measurement accuracy ; Power supply: 110 V AC / 120 V AC / 220 V AC / 240 V AC ;

AVAILBILITY: 1 In SKU magazine: UT-8802E Categories: , Tag:

Description

DC voltage measurement:
  • 200 mv ± (0.1% + 5) @ 0.01 MV,
  • 2 V ± (0.1% + 3) @ 0.1 MV,
  • 20 V ± (0.1% + 3) @ 0.001 V,
  • 200 V ± (0.1% + 3) @ 0.01 V,
  • 1000 V ± (0.2% + 5) @ 0.1 V
    • AC voltage measurement:
  • 2 V @ 100 µV ± (0.5% + 20) @ 40 Hz ... 1 kHz
  • 20 V @ 1 MV ± (0.5% + 20) @ 40 Hz ... 1 kHz
  • 200 V @ 10 MV ± (0.5% + 20) @ 40 Hz ... 1 kHz
  • 750 V @ 0.1 V ± (0.8% + 40) @ 40 Hz ... 1 kHz
    • DC current measurement:
  • 200 µa ± (0.5% + 20) @ 10 on,
  • 2 ma ± (0.5% + 20) @ 100 on,
  • 20 ma ± (0.5% + 20) @ 1 µa,
  • 200 ma ± (0.5% + 20) @ 10 µa,
  • 20 a ± (1.5% + 40) @ 1 MA
    • AC current measurement:
  • 2 MA @ 0.1 µA ± (0.8% + 40) @ 45 Hz ... 400 Hz
  • 20 mA @ 1 µa ± (0.8% + 40) @ 45 Hz ... 400 Hz
  • 200 mA @ 10 µa ± (0.8% + 40) @ 45 Hz ... 400 Hz
  • 20 a @ 1 ma (2% + 40) @ 45 Hz ... 400 Hz
    • Resistance measurement:
  • 200 Ω ± (0.5% + 10) + resistance of measuring cables @ 0.01 Ω,
  • 2 kΩ ± (0.5% + 10) @ 0.1 Ω,
  • 20 kΩ ± (0.5% + 10) @ 1 Ω,
  • 200 kΩ ± (0.5% + 10) @ 10 Ω,
  • 2 mΩ ± (0.5% + 10) @ 100 Ω,
  • 200 mΩ @ 1 kΩ
    • Capacity measurement:
  • 20 NF ± (2.5% + 10) @ 1 pf,
  • 200 NF ± (1.5% + 10) @ 10 PF,
  • 2 µF ± (1.5% + 10) @ 100 pf,
  • 20 µF ± (1.5% + 10) @ 1 NF,
  • 200 µF ± (1.5% + 10) @ 10 NF,
  • 2 mf ± (1.5% + 10) @ 100 NF,
  • 20 mf ± (10% + 10) @ 1 µF,
  • 100 mf @ 10 µF
    • Inductance measurement:
    Frequency measurement:
  • 200 Hz ± (1% + 5) @ 0.01 Hz,
  • 2 khz ± (1% + 5) @ 0.1 Hz,
  • 20 khz ± (1% + 5) @ 1 Hz,
  • 200 khz ± (1% + 5) @ 10 Hz,
  • 2 MHz ± (1% + 5) @ 100 Hz,
  • 10 MHz ± (1% + 5) @ 1 kHz,
  • 5 % ... 99 % ± (1.5 % + 2) @ 10 Hz ... 10 kHz
    • Temperature measurement:
    Automatic change of measuring ranges:
    HFE:
    LED test:
    Signaling of the circuit continuity:
    Checking TTL logical states:
    RS-232:
    USB:
    Selected features:
  • Very high measurement accuracy
  • EBTN display
  • Rel - relative measurement mode
  • Save value max / min
  • Hold - stopping the meter indication
  • USB port
  • Aesthetic and solid performance
    • Power supply:110 V AC / 120 V AC / 220 V AC / 240 V AC - selected with a switch
    Libra:3.43 kg
    Dimensions:320 x 265 x 110 mm
    Manufacturer / brand:Un-T
    Guarantee:2 years

    Download materials:

    Additional information

    Libra 4.2320 kg
    Dimensions 37 × 15.5 × 29.5 cm
    Libra

    4.2320
    Length

    37
    Width

    15.5
    Height

    29.5
    Ean

    5901890044318
    Producer

    Un-T

    Mark

    Un-T

    Un-T is a renowned brand specializing in the production of measuring tools and test instruments. The company offers a wide range of devices, including universal meters, oscilloscopes, multimeters, analyzers, thermometers. And other instruments that are used in various industries - from electronics, through industry, to learning and education.

    The products are characterized by high precision, reliability and intuitiveness of service. The brand has gained the trust of users around the world, thanks to innovative solutions, durability of equipment. And a competitive price. Uni-T focuses on modern technologies, providing clients with tools for accurate measurements. Which meet the requirements of professionals and amateurs.

    The brand's offer also includes measurement supporting accessories, such as probes, cables and power supplies that allow wider use of devices in various working environments. Too synonymous with quality and reliability in the field of measuring technology.
