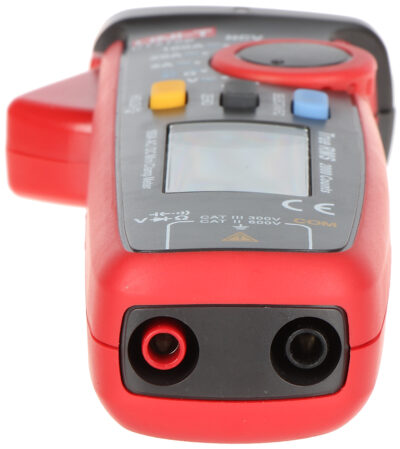

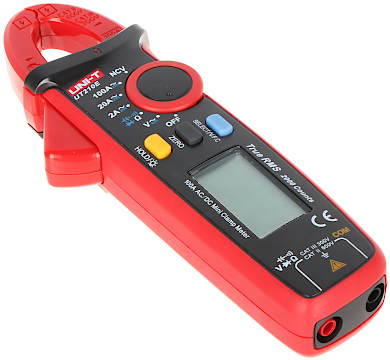

UT-210E un-t tin meter

0 out of 5
(There is no product opinion yet.)

249,46 zloty

Selected features: TRUE RMS - thorough measurement of the actual value of effective current and voltage for any shape, NCV - electric field detection function, Hold - stopping the meter indication;

AVAILBILITY: 22 In the SKU magazine: UT-210E Categories: , :

Description

DC voltage measurement:200 mv ± (0.7% + 5) @ 0.1 MV,
2 V ± (0.7% + 3) @ 0.001 V,
20 V ± (0.7% + 3) @ 0.01 V,
200 V ± (0.7% + 3) @ 0.1 V,
600 V ± (0.7% + 3) @ 1 V
AC voltage measurement:2 V ± (1.0% + 3) @ 0.001 V,
20 V ± (1.0% + 3) @ 0.01 V,

  • VFC OFF:
    • 200 V ± (1.0% + 3) @ 0.1 V,
    600 V ± (1.2% + 3) @ 1 V,

  • VFC ON:
    • 200 V ± (4.0% + 3) @ 0.1 V,
    600 V ± (4.0% + 3) @ 1 V
    DC current measurement:2 a ± (2% + 8) @ 0.001 A,
    20 A ± (2% + 3) @ 0.01 A,
    100 A ± (2% + 3) @ 0.1 A
    AC current measurement:
  • VFC OFF:
    • 2 a ± (3.0% + 10) @ 0.001 A,
    20 a ± (2.5% + 8) @ 0.01 a,
    100 a ± (2.5% + 5) @ 0.1 A,

  • VFC ON:
    • 2 a ± (4.0% + 10) @ 0.001 A,
    20 a ± (4.0% + 10) @ 0.01 a,
    100 A ± (4.0% + 10) @ 0.1 A
    Resistance measurement:200 Ω ± (1.0% + 2) @ 0.1 Ω,
    2 kΩ ± (1.0% + 2) @ 0.001 kΩ,
    20 kΩ ± (1.0% + 2) @ 0.01 kΩ,
    200 kΩ ± (1.0% + 2) @ 0.1 kΩ,
    2 mΩ ± (1.2% + 3) @ 0.001 MΩ,
    20 MΩ ± (1.2% + 3) @ 0.01 MΩ
    Capacity measurement:2 NF ± (4% + 10) @ 0.001 NF,
    20 NF ... 200 µF ± (4% + 5) @ 0.01 NF ... 0.1 µf,
    2 mf ... 20 mf ± 10% @ 0.001 mf ... 0.01 mf
    Inductance measurement:
    Frequency measurement:
    Temperature measurement:
    Automatic change of measuring ranges:
    LED test:
    Signaling of the circuit continuity:
    RS-232:
    USB:
    Selected features:
  • True RMS - a thorough measurement of the actual value of effective current and voltage for any shape,
  • NCV - an electric field detection function,
  • Hold - stopping the meter indication,
  • Large, legible LCD display with backlight,
  • Low battery level alarm,
  • Aesthetic and solid performance,
  • The set includes a practical case

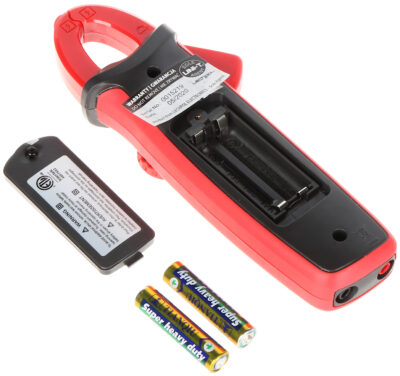

    • Power supply:2 x 1.5V battery, type AAA/LR03 - included
    Libra:0.17 kg
    Dimensions:175 x 62 x 32 mm
    Manufacturer / brand:Un-T
    Guarantee:2 years

    Download materials:

    Additional information

    Libra 0.3200 kg
    Dimensions 18.5 × 7 × 6 cm
    Libra

    0.3200
    Length

    18.5
    Width

    7
    Height

    6
    Ean

    6935750521052
    Producer

    Un-T

    Mark

    Un-T

    Un-T is a renowned brand specializing in the production of measuring tools and test instruments. The company offers a wide range of devices, including universal meters, oscilloscopes, multimeters, analyzers, thermometers. And other instruments that are used in various industries - from electronics, through industry, to learning and education.

    The products are characterized by high precision, reliability and intuitiveness of service. The brand has gained the trust of users around the world, thanks to innovative solutions, durability of equipment. And a competitive price. Uni-T focuses on modern technologies, providing clients with tools for accurate measurements. Which meet the requirements of professionals and amateurs.

    The brand's offer also includes measurement supporting accessories, such as probes, cables and power supplies that allow wider use of devices in various working environments. Too synonymous with quality and reliability in the field of measuring technology.
