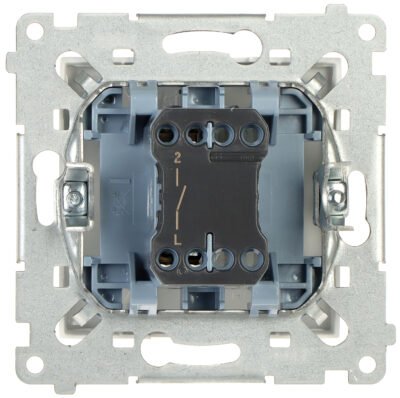

Single -hole connector DW1A.01/11 -SIMON54 250V 16A - Picture 1
Single -hostel connector DW1A.01/11 -SIMON54 250V 16A - Picture 2
Single -hole connector DW1A.01/11 -SIMON54 250V 16A - Picture 3
Single -hole connector DW1A.01/11 -SIMON54 250V 16A - Picture 4
Single -hole connector DW1A.01/11 -SIMON54 250V 16A - Picture 5
Direction button for DZP1A.01/11-SIMON54 250V 16A blinds
Triple connector DW31.01/11-SIMON54 250V 10A

Single-free connector DW1A.01/11-SIMON54 250V 16A

0 out of 5
(There is no product opinion yet.)

24,06 zloty

Type of device: unipolar connector (bistable) ; Rated voltage: 250 V AC ; Rated current: 16 A (induction load) ; Type of connectors: Twisted clamps ; Color: white (RAL 9003) ;

AVAILBILITY: 3 In the SKU magazine: DW1A.01/11-SIMON54 Categories: ,

Description

Type of device:One -handed connector (bistable)
Rated voltage:250 V AC
Rated current:16 A (induction load)
Type of connectors:Twisted clamps
Application:Flush -mounted, Simon 54 series, for Nature frames, Premium
Backlight:
Installation:Installation with claws or screws
Tightness class:IP20 / IP44 (using frame seal)
Case:Halogen -free plastic, PC
Color:White (RAL 9003)
Libra:0.058 kg
Dimensions:
  • 75 x 75 x 41 mm
  • 26 mm - assembly depth
    • Manufacturer / brand:Simon contact
    Guarantee:6 years

    Download materials:

    Additional information

    Libra 0.0620 kg
    Dimensions 8 × 8 × 4.5 cm
    Libra

    0.0620
    Length

    8
    Width

    8
    Height

    4.5
    Ean

    5902787822156
    Producer

    Simon contact

    Reviews

    There is no product opinion yet.

    Write the first opinion about "single-wheel connector DW1A.01/11-SIMON54 250V 16A"
