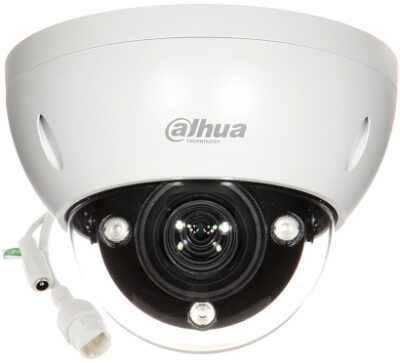

IPC IPC-HDBW5541E-ZE-27135-DC12AC24V-5MPX, 2.7 ... 13.5mm-Motozoom Dahua vandalos

0 out of 5
(There is no product opinion yet.)

2286,90 zloty

Coverler: 1/2.7 ”Progressive Scan CMOS ; resolution: 2592 x 1944, 2688 x 1520, 2560 × 1440, 2304 x 1296, 1920 x 1080 ; lens: - motosoom ; viewing angle: 100 ° ... 28 ° ; IR range : 40 m ; Image compression method: H.265+ ; SD up to 256GB ( Local entry ) ;​​

AVAILBILITY: NOT in the SKU magazine: IPC-HDBW5541E-WE-27 Categories: , , ,

Description

Standard:TCP/IP
Converter:1/2.7 ”Progressive Scan CMOS
Matrix size:5 Mpx
Resolution:2592 x 1944 - 5 Mpx ,
2688 x 1520 - 4 Mpx ,
2560 × 1440 - 3.7 Mpx ,
2304 x 1296 - 3 Mpx ,
1920 x 1080 - 1080p
1280 x 960 - 1.3 Mpx
1280 x 720 - 720p
Lens:2.7 ... 13.5 mm - Motozoom
Angle of view:
  • 100 ° ... 28 ° (manufacturer's data)
  • 96 ° ... 28 ° (our tests)
    • IR illuminator range:40 m
    RS-485 interface:
    Image compression method:H.265+ / H.265 / H.264+ / H.264 / MJPEG
    Memory card socket:Support for micro SD cards up to 256GB (local record possible)
    Alarm inputs / outputs:1 / 1
    Audio:
  • Entrance to the external microphone
  • Audio output
  • Two -way audio support
  • Sound detection
    • Bitrate (bitrate):32 KB/s ... 8192 KB/s - H.264
    19 KB/s ... 8192 KB/s - H.265
    Network interface:10/100 Base-T (RJ-45)
    Network protocols:HTTP, HTTPS, TCP , ARP, RTSP , RTP , UDP , RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/IPv6 , SNMP, QOS, UPNP, NTP, ICMP, IGMP, IEEE 802.1X, Multicast
    Web Server:Built -in, web viewer
    Max. Number of online users:20
    ONVIF:18.06
    Main stream transmission speed:20 kl/s @ 5 mpx
    25 kl/s @ 3.7 mpx
    50 kl/s @ 1080p
    Access from a mobile phone:Port: 37777 or access via the cloud (P2P)
  • Android: Free DMSS
  • iOS (iPhone): Free DMSS
    • Default login / administrator password:admin / -
    Administrator's password should be set at the first launch
    Default IP address:192.168.1.108
    Access ports via www:80, 37777
    Access ports through the PC application:37777
    Access port via the mobile application:37777
    ONVIF port:80
    RtSP URL:Rtsp: // admin: hasła@192.168.1.108: 554/CAM/Realmonitor? Channel = 1 & Subtype = 0 - main stream
    Rtsp: // admin: hasła@192.168.1.108: 554/Cam/Realmonitor? Channel = 1 & subtype = 1 - Auxiliary stream
    Selected functions:
  • Motozoom lens
  • WDR - 120 dB - a wide range of lighting dynamics
  • EIS - electronic image stabilization
  • 3D-DNR-digital noise reduction in the image
  • Roi - improving the quality of selected fragments of the image
  • F-DNR (defog)-reduction of noise associated with atmospheric precipitation
  • BLC / HLC - background light compensation / strong light
  • Possibility to change resolution, quality and bandwidth
  • Traffic detection
  • Configurable privacy zones
  • ICR - a mechanical infrared filter
  • Mirror - a mirror image of the image
  • Heat map - selecting in the image with appropriate colors of areas of varying traffic
  • Analysis IVS : crossing the line , change of stage , invasion , fast movement - classification of people and vehicles, abandoned/missing object , counting people - detection and service of 4 independent areas, detecting assembly of people, facial detection - supports 6 types of hair attributes extraction
    • Power supply:
  • EPOE,
  • Poe (802.3af),
  • 12 V DC / 1.03 MA,
  • 24 V AC / 520 MA
    • Power consumption:<12.4 W
    Case:Dome - metal
    Color:White
    Tightness class:IP67
    Vandal -proof:IK10
    Work temperature :-30 ° C ... 60 ° C
    Libra:0.88 kg
    Dimensions:Ø 159 x 118 mm
    Shared languages:Polish, English, Czech, French, Spanish, Dutch, German, Portuguese, Russian, Italian
    Manufacturer / brand:Dahua
    Guarantee:3 years

    Download materials:

    Additional information

    Libra 1.1740 kg
    Dimensions 20.5 × 19 × 19 cm
    Libra

    1.1740
    Length

    20.5
    Width

    19
    Height

    19
    Ean

    6939554966101
    Producer

    Dahua
