IP camera BCS-L-TIP14FSR3-W Wi-Fi-3.7MPX 2.8mm BCS LINE

0 out of 5
(There is no product opinion yet.)

610,08 zloty

Coverler: 1/3 ”Progressive Scan CMOS ; matrix size: 3.7 Mpx ; resolution: 2560 x 1440, 2304 x 1296, 1920 x 1080 ; viewing angle: 90 ° ; IR lighting range IR: 30 m ; image compression method: H.265+ ; Memory card socket: MICRO SD card support up to 256GB (Local record) ; selected functions: 2.4 GHz IEEE 802.11 b/g / n ;

AVAILBILITY: 1 In the SKU magazine: BCS-L-TIP14FSR3-W Categories: , ,

Description

Standard:TCP/IP
Converter:1/3 "Progressive Scan CMOS
Matrix size:3.7 Mpx
Resolution:2560 x 1440 - 3.7 Mpx ,
2304 x 1296 - 3 Mpx ,
1920 x 1080 - 1080p ,
1280 x 960 - 1.3 Mpx ,
1280 x 720 - 720p
Lens:2.8 mm, F2.0
Angle of view:
  • 90 ° (manufacturer's data)
  • 89 ° (our tests)
    • IR illuminator range:30 m
    Image compression method:H.265+ / H.265 / H.264+ / H.264
    Alarm inputs / outputs:
    Audio:
  • Built -in microphone
  • Noise reduction
  • Sound detection
    • Main stream transmission speed:
  • 20 kl/s @ 3.7 mpx
  • 25 kl/s @ 3 mpx
    • Network interface:10/100 Base-T (RJ-45) , 2.4 GHz Wi-Fi IEEE 802.11 b/g/n
    Network protocols:IPv4 , HTTP, TCP , UDP , ARP, RTP , RTSP , RTCP, DHCP, DNS, NTP, Multicast, RTMP
    Web Server:Built-in, compliance with NVR, 20 users online
    ONVIF:21.06

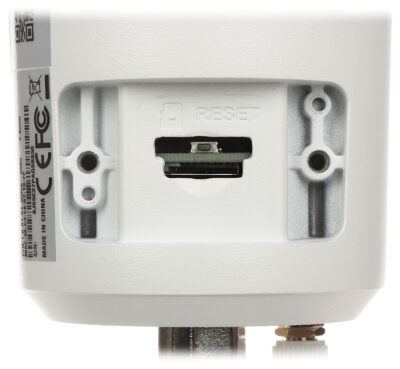

    Memory card socket:Support for micro SD cards up to 256GB (local record possible)
    Access from a mobile phone:Access via the cloud (P2P)
  • Android: Free BCS Manager
  • iOS (iPhone): Free BCS Manager
    • Default login / administrator password:admin / -
    Administrator's password should be set at the first launch
    Default IP address:DHCP
    Access ports via www:80, 37777
    Access ports through the PC application:37777
    Access port via the mobile application:37777
    ONVIF port:80
    RtSP URL:Rtsp: // admin: hasła@192.168.1.108: 554/CAM/Realmonitor? Channel = 1 & Subtype = 0 - main stream
    Rtsp: // admin: hasła@192.168.1.108: 554/Cam/Realmonitor? Channel = 1 & subtype = 1 - Auxiliary stream
    Selected functions:
  • Wi-Fi module-2.4 GHz IEEE 802.11 b/g/n; Antenna - SMA socket
  • D-WDR-a wide range of lighting dynamics
  • 3D-DNR-digital noise reduction in the image
  • Roi - improving the quality of selected fragments of the image
  • BLC / HLC - background light compensation / strong light
  • D-Zoom-16 x digital zoom
  • Mirror - a mirror image of the image
  • Day/Night mode
  • ICR - a mechanical infrared filter
  • Automatic white balance
  • AGC - automatic image reinforcement adjustment
  • Configurable privacy zones
  • Traffic detection
  • Human detection
    • Case:Compact - metal
    Color:White
    Tightness class:IP67
    Power supply:12 V DC / 350 MA
    Power consumption:max. 4.1 in
    Work temperature :-40 ° C ... 60 ° C
    Libra:0.48 kg

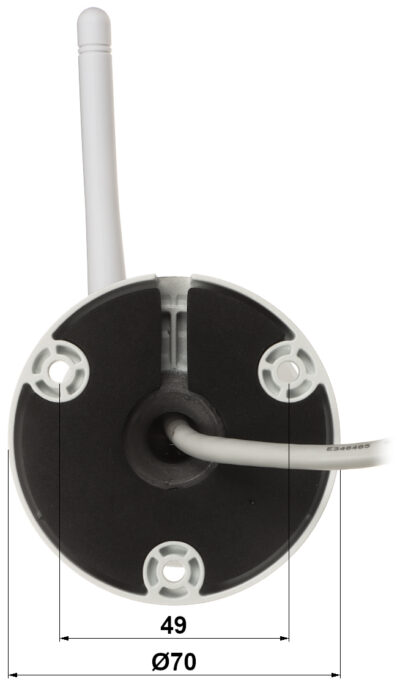

    Dimensions:Ø 70 x 166 mm
    Shared languages:Polish, English
    Manufacturer / brand:Bcs line
    Guarantee:3 years

    Download materials:

    Additional information

    Libra 0.7240 kg
    Dimensions 23 × 12 × 10 cm
    Libra

    0.7240
    Length

    23
    Width

    12
    Height

    10
    Ean

    5904890707641
    Producer

    Bcs line
